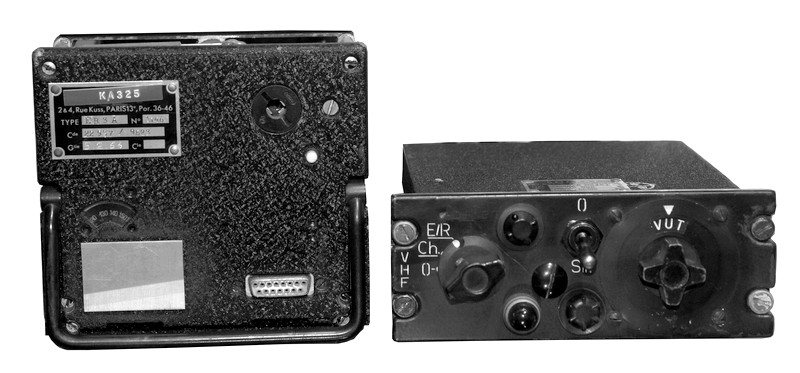

The Socrat ER 3 A got the military designation SE-027. The Swiss Air Force Alouette III helicopters built by Sud Aviation came with these aircraft radios installed.

Transceiver,

100 - 156 MHz,

Telephony A3, pout xx W

Receiver section superhet, IF 9,72 MHz

Selectivity


up to twenty crystal controlled channels crystal, power supply from 27,5 Volts on-board system via a rotary transformer, rod antenna.

The Socrat ER 3 A is a compact VHF aircraft transceiver built up with valves, is is powered by the helicopter's on board 27,5 V electric system, the high voltages for plate and grids is generated in a rotary transformer.

The VHF radio Socrat / SE-027 was installed in helicopters Alouette III of the Swiss Air Force, it was in use during the years 1964 - 1976.

I would be very thankful for further information and images.

further information:
Information from the Swiss Air Force Museum Dubendorf, where the equipment is displayed.
d: Socrat ER.9.A in the www.autophon-museum.ch

© 3.1.2013 Martin Bösch
