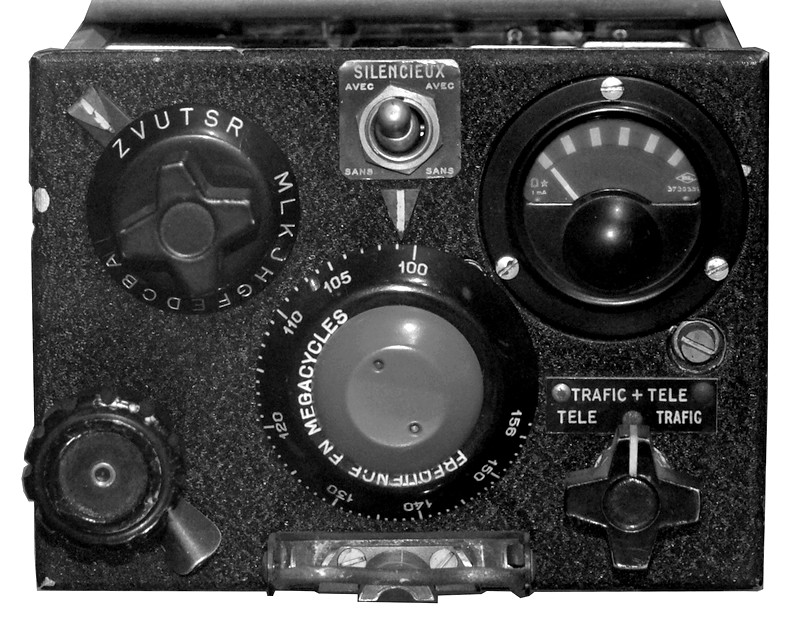

Together with the helicopter Alouette II built by the French company Sud Aviation, the aircraft VHF radio which came with it made by the French company Socrat was a new part of equipment used by the Swiss Air Force. The Socrat TR-AP-19-A got the military designation SE-020. .

Transceiver,

100 - 156 MHz,

Telephony A3, pout 1 W
Receiver section Superhet, IF 9,72 MHz

Selectivity-6/-60 dB
40 / 140 kHz

up to twenty channels crystal controlled or tuneable via VFO, power supply from 27,5 Volts on-board system via a rotary transformer, rod antenna.

The Socrat TR-AP-19-A is a very compact VHF aircraft transceiver built up with valves, is is powered by the helicopter's on board 27,5 V electric system, the high voltages for plate and grids is generated in a rotary transformer.

The set is tuneable in the complete AHF air band range, up to twenty channels can be crystal controlled. The set can also be used as an on-board intercom (position "TELE" of the mode switch.

The VHF radio Socrat / SE-020 was installed in all helicopters Alouette II and probably also i nthe later Alouette III models of the Swiss Air Force, it was in use during the years 1954 - 1976.

I would be very thankful for further information and images.

further information:
Information from the Swiss Air Force Museum Dubendorf, where the equipment is displayed.
d: Socrat ER.9.A in the www.autophon-museum.ch
